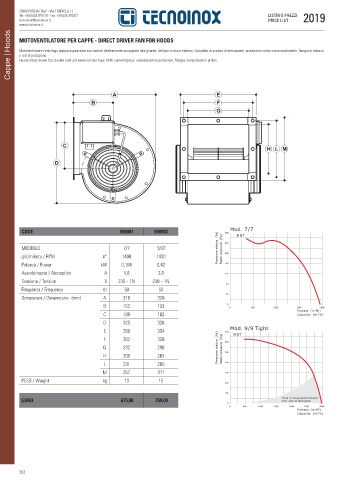

Cappe | Hoods MOTOVENTILATORE PER CAPPE - DIRECT DRIVER FAN FOR HOODS
Motoventilatore centrifugo doppia aspirazione con motore direttamente accoppiato alla girante, del tipo a rotore esterno. Completo di scatola di derivazione, protezione contro sovrassorbimento, flangia di attacco
e reti di protezione.
Hoods direct driven fan, double inlet ant external rotor type. With conneting box, overabsorption protection, flanges and protection grilles.
CODE 598001 598002
MODELLO 7/7 9/9T
giri/minuto / RPM n° 1400 1400
Potenza / Power kW 0,184 0,42
Assorbimento / Absorption A 1,8 3,8
Tensione / Tension V 230 ~ 1N 230 ~ 1N
Frequenza / Frequency Hz 50 50
Dimensioni / Dimensions - (mm) A 316 320
B 152 153
C 188 182
D 325 326
E 288 354
F 282 328
G 232 298
H 208 263
L 231 285
M 257 311
PESO / Weight kg 13 15
EURO 675,00 759,00
